National Item Identification Number

01-123-2946
011232946
4730-01-123-2946
4730011232946

National Stock Number

Item Name

TEE,PIPE TO TUBE

Federal Supply Class

4730

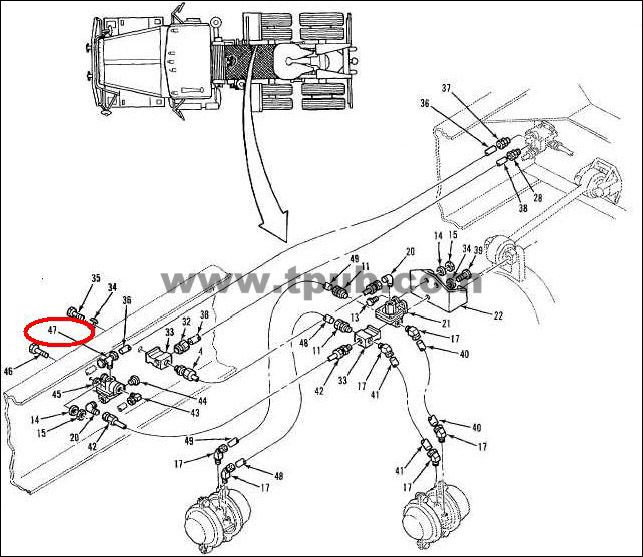

Referenced on: http://www.tpub.com/content/trucktractor6x4/TM-9-2320-273-24P/css/TM-9-2320-273-24P_1030.htm
Referenced on: http://www.tpub.com/content/trucktractor6x4/TM-9-2320-273-24P/css/TM-9-2320-273-24P_832.htm
Referenced on: http://www.tpub.com/content/trucktractor6x4/TM-9-2320-273-24P/css/TM-9-2320-273-24P_929.htm
Referenced on: http://www.tpub.com/content/trucktractor6x4/TM-9-2320-283-24P/css/TM-9-2320-283-24P_393.htm
Referenced on: http://www.tpub.com/content/trucktractor6x4/TM-9-2320-283-24P/css/TM-9-2320-283-24P_444.htm
Referenced on: http://www.tpub.com/content/trucktractor6x4/TM-9-2320-283-24P/css/TM-9-2320-283-24P_510.htm

Description

A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The pipe connection(s) has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The tube connection(s) has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fitting and a tube or tube fitting.

Commercial and Government Entity Code (Supplier Data)







81343



93061


PARKER HANNIFIN CORP
BRASS PRODUCTS DIV
300 PARKER DR
OTSEGO
MI
49078
269-694-9411


81343



NSN (National Stock Number) 4730-01-123-2946, 4730011232946 NIIN (National Identification Number) 01-123-2946, 011232946


4730-01-123-2946, 4730011232946, 01-123-2946, 011232946

Part Numbers (Reference Numbers)

J246
272NTA-4-4
4-4-4 100425BA

Required Categories

MATERIAL
MATERIAL DOCUMENT AND CLASSIFICATION
MEDIA FOR WHICH DESIGNED
MAXIMU

Required Description

COPPER ALLOY 345 OR
COPPER ALLOY 360 OVERALL
SAE-J461D ASSN STD ALL MATERIAL R
