National Item Identification Number

00-900-8626
009008626
4730-00-900-8626
4730009008626

National Stock Number

Item Name

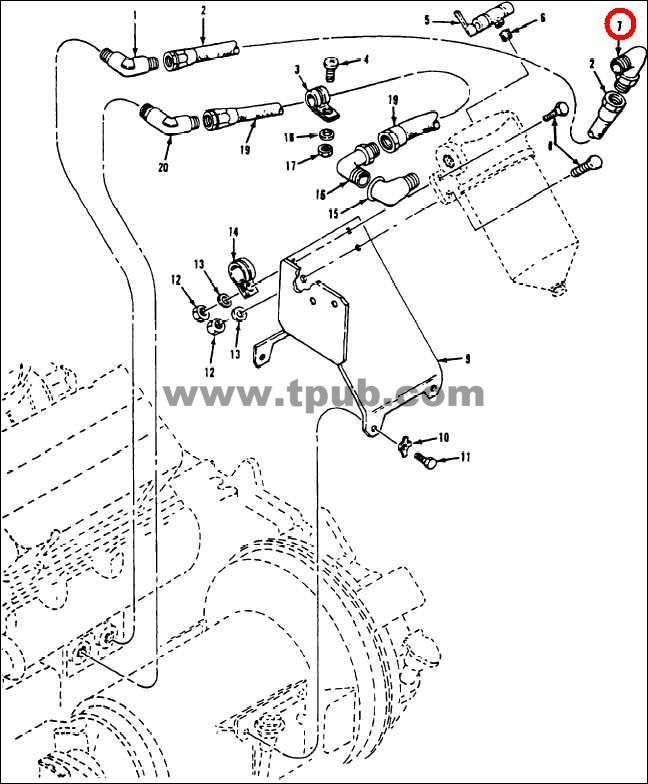

ELBOW,PIPE TO TUBE

Federal Supply Class

4730

Referenced on: http://www.tpub.com/content/carrierpersonnel/TM-9-2350-261-24P/css/TM-9-2350-261-24P_1169.htm
Referenced on: http://www.tpub.com/content/carrierpersonnel/TM-9-2350-261-24P/css/TM-9-2350-261-24P_1325.htm
Referenced on: http://www.tpub.com/content/carrierpersonnel/TM-9-2350-261-24P/css/TM-9-2350-261-24P_1354.htm

Description

A fitting that forms an angle of less than 180 degrees (3.142 radians) from the straight flow. One connecting end has standard pipe threads, or is unthreaded and designed to accommodate a pipe. The other end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE; ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.

Commercial and Government Entity Code (Supplier Data)

---

81343

---

---

81343

---

---

30780

---

PARKER HANNIFIN CORPORATION
DIV TUBE FITTINGS DIVISION
3885 GATEWAY BOULEVARD
COLUMBUS
OH
43228
614-279-7070

---

45681

---

---

98441

---

---

NSN (National Stock Number) 4730-00-900-8626, 4730009008626 NIIN (National Identification Number) 00-900-8626, 009008626

Part Numbers (Reference Numbers)

J514
16-16 071502(ANOD ALUM)
16CCTXD
16CCTXD
16CCTXD

Required Categories

MATERIAL
MATERIAL DOCUMENT AND CLASSIFICATION
SURFACE TREATMENT
CONNECTION TY

Required Description

ALUMINUM ALLOY 2014 OVERALL
QQ-A-367,T6 FED SPEC SINGLE MATERIAL RESPONSE OVERA
