National Item Identification Number

00-988-9946
009889946
4730-00-988-9946
4730009889946

National Stock Number

Item Name

STRAINER ELEMENT,SEDIMENT

Federal Supply Class

4730

Referenced on: http://gasturbinegenerators.tpub.com//TM-1-2840-254-23P/css/TM-1-2840-254-23P_132.htm
Referenced on: http://gasturbinegenerators.tpub.com//TM-1-2840-254-23P/css/TM-1-2840-254-23P_378.htm

Description

A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.

Commercial and Government Entity Code (Supplier Data)

---

99193

---

---

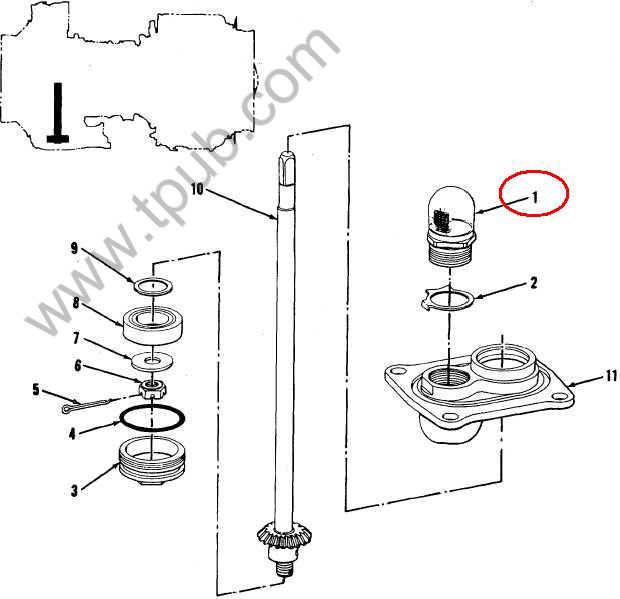

Image (It is your responsibility to verify the accuracy of these images)

Part Numbers (Reference Numbers)

2-060-280-01

Required Categories

MATERIAL
MATERIAL DOCUMENT AND CLASSIFICATION
FILTERING MEDIA DESIGN
MESH SIZ

Required Description

STEEL
AMS 5690 FED STD SINGLE MATERIAL RESPONSE
MESH
20.0
0.02000 INCHES NOM
