National Item Identification Number
01-140-8251
011408251
4730-01-140-8251
4730011408251
National Stock Number
Item Name

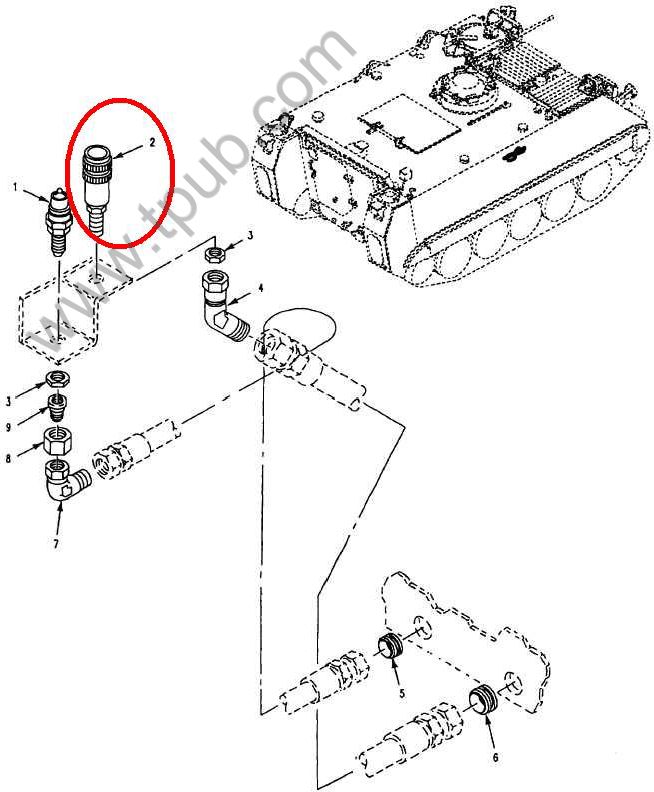

COUPLING HALF,QUICK DISCONNECT
Federal Supply Class
4730
Referenced on: http://automotiveaccessories.tpub.com//TB-9-2350-368-25/TB-9-2350-368-250067.htm
Referenced on: http://automotiveaccessories.tpub.com//TB-9-2350-368-25/TB-9-2350-368-250104.htm
Referenced on: http://www.tpub.com/content/carrierpersonnel/TM-9-2350-277-24P/css/TM-9-2350-277-24P_1154.htm
Referenced on: http://www.tpub.com/content/carrierpersonnel/TM-9-2350-277-24P/css/TM-9-2350-277-24P_1278.htm
Referenced on: http://www.tpub.com/content/carrierpersonnel/TM-9-2350-277-24P/css/TM-9-2350-277-24P_1333.htm
Referenced on: http://www.tpub.com/content/carrierpersonnel/TM-9-2350-277-24P/css/TM-9-2350-277-24P_1334.htmDescription
A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Commercial and Government Entity Code (Supplier Data)
19207
19207
91561
91561
91561
NSN (National Stock Number) 4730-01-140-8251, 4730011408251 NIIN (National Identification Number) 01-140-8251, 011408251
Part Numbers (Reference Numbers)
12297003
12297003-4
751S-1257-E2
7809-085
809-085
Required Categories
MATERIAL
SURFACE TREATMENT
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
STYL
Required Description
STEEL BODY
CADMIUM OR
ZINC BODY
QQ-P-416,TYPE 2,CLASS 3 FED SPEC 1ST TREATMEN
