National Item Identification Number

01-197-7221
011977221
4730-01-197-7221
4730011977221

National Stock Number

Item Name

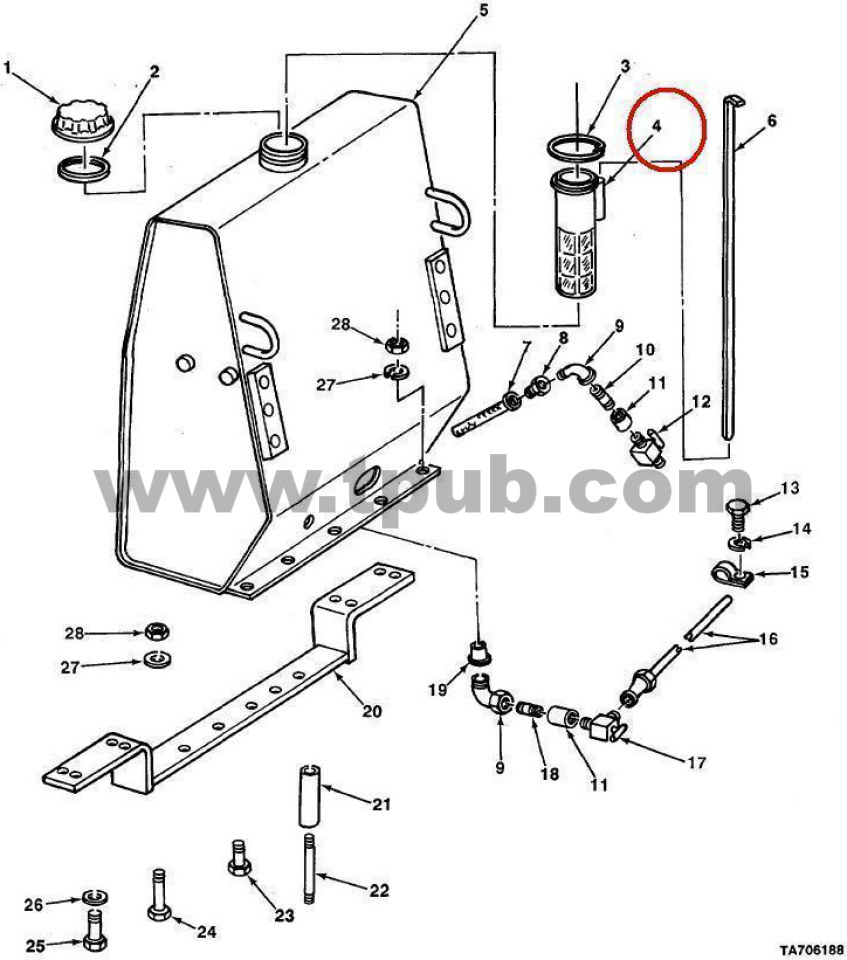

STRAINER ELEMENT,SEDIMENT

Federal Supply Class

4730

Referenced on: http://constructiontractors.tpub.com//TM-5-2410-235-24P/TM-5-2410-235-24P0404.htm
Referenced on: http://constructiontractors.tpub.com//TM-5-2410-235-24P/TM-5-2410-235-24P0414.htm
Referenced on: http://constructiontractors.tpub.com//TM-5-2410-235-24P/TM-5-2410-235-24P0483.htm

Description

A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID.

Commercial and Government Entity Code (Supplier Data)

---

75755

---

---

75160

---

---

NSN (National Stock Number) 4730-01-197-7221, 4730011977221 NIIN (National Identification Number) 01-197-7221, 011977221

Part Numbers (Reference Numbers)

AT161638
AT36652

Required Categories

MATERIAL
FILTERING MEDIA DESIGN
WIRE DIAMETER
THICKNESS
LENGTH
ELEMENT OUTS

Required Description

PLASTIC POLYAMIDE
MESH
0.020 INCHES NOMINAL
0.090 INCHES NOMINAL
10.000 INCH
