National Item Identification Number
01-199-7719
011997719
4730-01-199-7719
4730011997719
National Stock Number
Item Name
CLAMP,HOSE
Federal Supply Class
4730

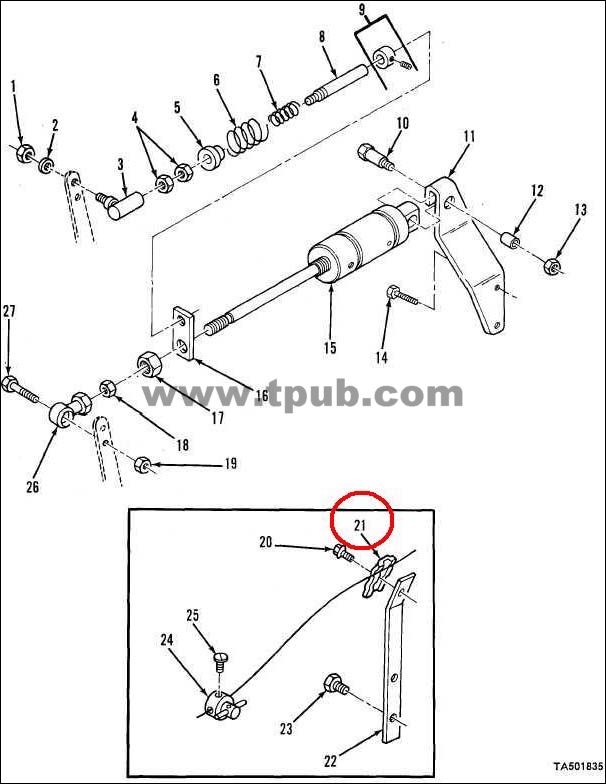

Referenced on: http://compressors.tpub.com//TM-5-4310-452-24P/css/TM-5-4310-452-24P_223.htmDescription
A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW.
Commercial and Government Entity Code (Supplier Data)
33968
INGERSOLL-RAND COMPANY
DBA INGERSOLL-RAND DIV PORTABLE
501 SANFORD AVE
MOCKSVILLE
NC
27028
703-527-2744
NSN (National Stock Number) 4730-01-199-7719, 4730011997719 NIIN (National Identification Number) 01-199-7719, 011997719
Part Numbers (Reference Numbers)
X1503T1
