National Item Identification Number

01-260-4396
012604396
4730-01-260-4396
4730012604396

National Stock Number

Item Name

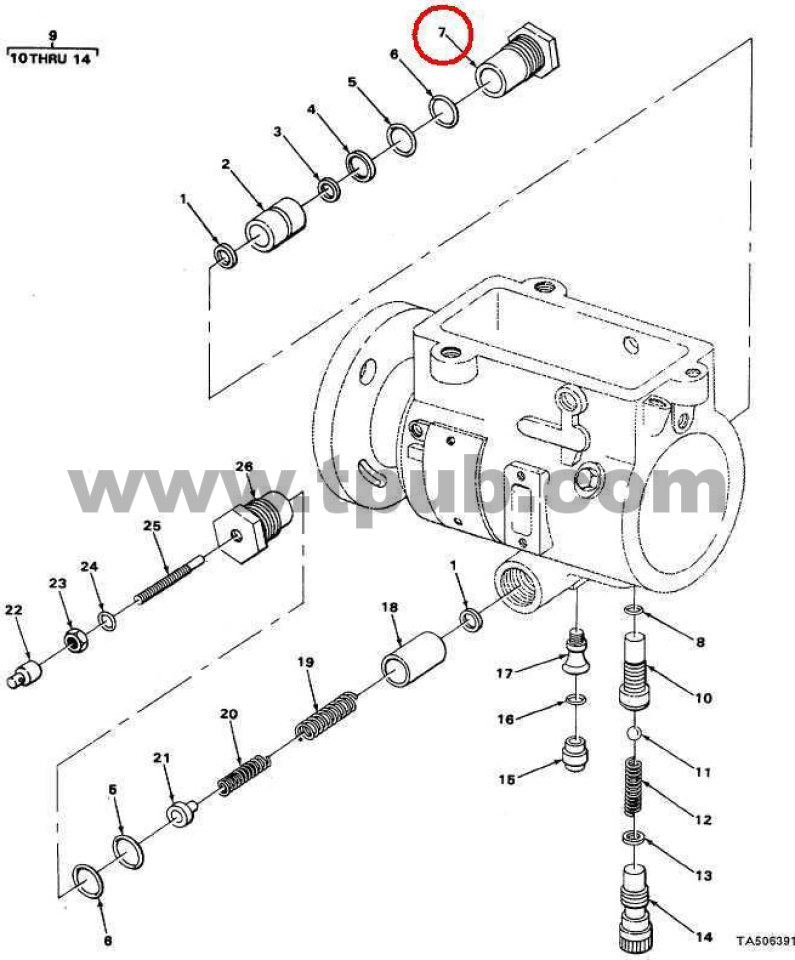

BOLT,FLUID PASSAGE

Federal Supply Class

4730

Referenced on: http://constructiontractors.tpub.com//TM-5-2420-222-34P/css/TM-5-2420-222-34P_551.htm
Referenced on: http://constructiontractors.tpub.com//TM-5-2420-222-34P/css/TM-5-2420-222-34P_584.htm
Referenced on: http://constructiontractors.tpub.com//TM-5-2420-222-34P/css/TM-5-2420-222-34P_634.htm

Description

A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.

Commercial and Government Entity Code (Supplier Data)

---

75160

---

---

75755

---

---

NSN (National Stock Number) 4730-01-260-4396, 4730012604396 NIIN (National Identification Number) 01-260-4396, 012604396

Part Numbers (Reference Numbers)

R49212
R49212

Required Categories

FIRST END STYLE DESIGNATOR
FIRST END THREAD SERIES DESIGNATOR
FIRST END NOMINA

Required Description

C6 PLAIN
NPT
0.750 INCHES
RIGHT-HAND
THREADED EXTERNAL PIPE
